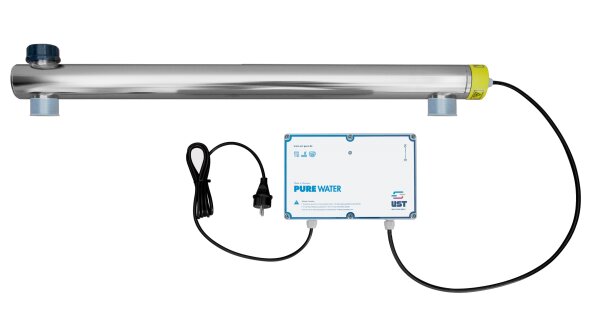

PURE 2.4-120W

SKU: 6008
GTIN: 4262499360294
Category: UV-C Reaktoranlagen
Manufacturers: UST Umwelt-Systemtechnik GmbH

The PURE 2.4-120W UV disinfection system ensures superior water quality for various applications. With a robust flow rate of up to 20 m³/h, this powerful unit guarantees reliable elimination of bacteria and viruses, providing safe and clean water. Its high-performance UVC technology is ideal for demanding commercial or industrial needs.

1.680,00 €

Final price* , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Description

Product information

The PURE 2.4-120W UVC disinfection system represents a robust and highly efficient solution for comprehensive water treatment, engineered to deliver superior microbial inactivation across diverse applications. This advanced UVC reactor, with its substantial 120 W electrical power, is specifically designed for environments demanding high flow rates and stringent water quality standards, such as drinking water wells, swimming pools, and pond systems. Its sophisticated UVC lamp technology effectively neutralizes bacteria, viruses, and other microorganisms without the addition of chemicals, ensuring a safe and clean water supply. The system's capacity to handle up to 20 m³/h (max.) or maintain drinking water quality at 6 m³/h with a germicidal dose exceeding 400 J/m² highlights its exceptional performance capabilities and reliability for critical disinfection tasks.

High-Capacity Microbial Inactivation: Delivers powerful UVC radiation for effective disinfection, neutralizing bacteria and viruses without chemical additives.
Optimized Flow Rates: Capable of processing up to 20 m³/h, with a guaranteed 6 m³/h for potable water applications at >400 J/m² dose.
Robust Construction: Features an electropolished 1.4571 stainless steel reactor, ensuring long-term durability and resistance to corrosion.
Energy-Efficient Operation: Designed for continuous, cost-effective performance while maintaining peak disinfection efficacy.
Versatile Application: Ideal for drinking water treatment, swimming pools, pond systems, and various industrial water purification needs.
Precise Technical Specifications: Engineered for maximum operational reliability with a maximum temperature of 40 °C and operating pressure of 6 bar.

Maintenance

Replace the UV lamp every 12 months or a maximum of 9000 hours. The lamp can be easily replaced by loosening screws and then pulling it out.

*SSK = spectral attenuation coefficient, i.e., the water must be at least 95% transparent, otherwise pre-filtration is necessary

Technical details

Specification	Value
Electrical Power	120 W
Max. Flow Rate	20 m³/h
Drinking Water Flow Rate (>400 J/m²)	6 m³/h
Max. Temperature	40 °C
Max. Operating Pressure	6 bar
Voltage	208/230 VAC
Water Connection	R 2"
Reactor Unit Length	1050 mm

For unparalleled water purification and microbial safety, integrate the PURE 2.4-120W into your water treatment infrastructure.

Item information	Value
Shipping weight:	10,80 kg
Item weight:	9,30 kg
