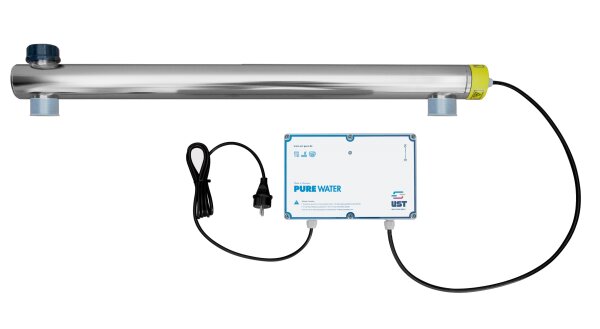

PURE 2.4-40W

SKU: 6006
GTIN: 4262499360232
Category: UV-C Reaktoranlagen
Manufacturers: UST Umwelt-Systemtechnik GmbH

Achieve unparalleled water purity with the PURE 2.4-40W UV Disinfection System. This powerful UVC unit effectively eliminates bacteria, viruses, and germs from your drinking water, ensuring safety and peace of mind for your household or commercial needs. Operating at 40W, it delivers reliable disinfection for flow rates up to 2.3 m³/h for potable water, making it an essential component for healthy living.

1.060,00 €

Final price* , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Description

Product information

The PURE 2.4-40W UV Disinfection System offers a robust and highly effective solution for ensuring microbiologically safe water in various applications. Engineered for precision and reliability, this advanced UVC reactor system utilizes powerful ultraviolet-C radiation to neutralize bacteria, viruses, and other pathogens without the need for chemical additives. With a dedicated flow capacity of 2.3 m³/h for potable water applications, meeting the stringent 400 J/m² dosage requirement, and a maximum flow rate of 20 m³/h, it is ideally suited for residential, commercial, and industrial settings demanding superior water quality. Its durable stainless steel construction and efficient power management make it a cornerstone for modern water treatment.

Advanced UVC Sterilization: Provides chemical-free disinfection, effectively eliminating up to 99.99% of bacteria, viruses, and other microorganisms by disrupting their DNA.
Optimized Flow Performance: Delivers a consistent 2.3 m³/h for potable water (at 400 J/m²) and a maximum flow of 20 m³/h, accommodating diverse water treatment needs.
Durable Reactor Construction: Features a robust 1.4404 stainless steel reactor unit with an electropolished surface, ensuring longevity and corrosion resistance.
High-Efficiency UV Lamp: Equipped with a 40W UV-C lamp emitting 27W at 254 nm, designed for 8,000 hours of continuous operation, minimizing maintenance frequency.
Flexible Installation: Includes a wall-mountable ABS ballast unit and R 2" PVC fittings, simplifying integration into existing plumbing systems.
Comprehensive Safety & Compatibility: Operates reliably within 5-40 °C water and ambient temperatures, and up to 6 bar operating pressure, with broad voltage compatibility (85-264 VAC).

Maintenance

Replace the UV lamp every 12 months or a maximum of 9000 hours. The lamp can be easily replaced by loosening screws and then pulling it out.

*SSK = spectral attenuation coefficient, i.e., the water must be at least 95% transparent, otherwise pre-filtration is necessary

Technical Details

Specification	Value
General System Type	UV Disinfection Unit
Potable Water Flow Rate (max.)	2.3 m³/h (based on 400 J/m² according to Drinking Water Ordinance)
Maximum Flow Rate (Qmax.)	20 m³/h
Electrical Power	40 W
Voltage	85-264 VAC
Temperature (max.)	40 °C
Operating Pressure (max.)	6 bar
Connection	R 2"
Length (Reactor Unit)	1050 mm
Reactor Unit
Material	Stainless Steel 1.4404
Surface Finish	Electropolished
Length	1050 mm
Diameter	76 mm
Connection	R 2"
Inlet Temperature	5 – 40 °C
Ambient Temperature	5 – 40 °C
Operating Pressure	max. 6 bar
Ballast Unit
Construction Type	Wall Mounting
Material	ABS
Voltage	110-230 VAC
Frequency	50/60 Hz
Power Consumption	40 W
Power Plug Connection	Yes
Radiator Unit (Lamp)
Lamp Type	UV-C
UV Emission at 254 nm	27 W
Service Life	8,000 operating hours
Radiator Protection Tube
Material	Pure Quartz Glass
Dimensions	20x23x950 mm
Accessories Included
PVC Fittings	2 x R 2" IG x KM 63 mm
Pipe Clamps	2 x PP for wall mounting

Invest in the PURE 2.4-40W UV system for uncompromising water disinfection and peace of mind.

Item information	Value
Shipping weight:	6,20 kg
Item weight:	6,00 kg
